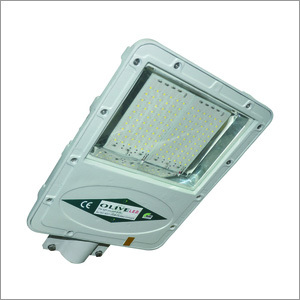

LED Street Lights (SLOL 15H)
Product Details:
Product Description
Unique Features: Designed and die casted with high class LM-06 grade aluminium supported with all SS 304 grade accessories, toughened glass and equipped with LM 80 cer fied LEDs and electronic component to perform and give best possible results.
Features:
- High voltage protection
- Over current protection
- Over heat protection
- Surge protection 4KV
- Short Circuit protections
| Voltage Range | 90V-290V AC |
| Power Consumption | As per sheet below |
| PF | >0.95 |
| THD | <10% |
| Phase type | Single phase |
| Internal wiring | Teflon |
| Input wire | 3 Core (Red Phase, Black Neutral, Green Ground) |
| Frequency | 50Hz-60Hz |
| Efficiency | >85% |
| Illuminance Design | LED + Reflector |
| Storage Temperature | -25°C ~ +65°C(Best 25°C) |
Housing Specifications
| Body Material | Aluminum |
| Dimension | 181x143x74mm |
| Weight | 1.6Kg |
| Ingress Protections | IP-65 |
| Pole Diameter | 1”to 2” inch adjustable |
| Cover | Toughened Glass |
| Gasket | Silicon |
| Accessories | Stainless Steel |
| Paint | Powder Coating |
| Moun ng | Pole Clamp |
| Power Cord | 0.75mm2 triple shield wire |
| Certificate | CE, RoHS, BIS, FCC, BEE |
Lighting Specifications
| Available wattages | 24W, 38W |
| No. of LEDs | 20, 32 |
| Lumens Output (Datasheet) | 130 lumens/Watts |
| Color Temperature | 2800~6500k(optional) |
| Beam Angle | 120° |
| CRI | >80 Ra |
| Operating Temp. | -40°C to 60°C |
| Life Span | >50000H |
| No. of L.E.D. | 15 |
| Working Volt Range | 110V to 270VAC or 12/24/48V DC |
| Frequency Range | 47~60 Hz |
| Power Consp. in appx. Watt | 20 |
| Lumens Output | 1800 |
| Colour Temperature | 6500K |
| Beam Angle | >120‚°/ 60X120 |
| CRI | >70 Ra |
| Application Efficiency | 100% |
| Operating Temp. | -20‚°C to 60‚°C |
| Working Humidity | <95% |
| Life Span with L-70 | 50000 hrs |
| Power Factor | >.90% |
| Power Efficiency | >80% |
| THD | <10% |
| Metal | Alm. Dye Cast |
| IP Rating | IP 65 |
| Commanding ht. in mtrs. | 4 |
| Flux Lux | 15-20 |
| Dimensions (outer size)mm | 181 x 143 x 74 |
| Weight | 1.600kgs |
| pole/clamp size/base | 35/27 |
| Applications | street & roads |
