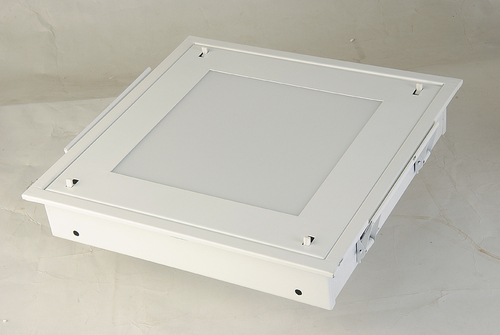

LED Surface Light
Product Details:
Product Description
Housing Specification
| Body Material | Aluminum |
| Dimension | Optional |
| Weight | Variable |
| In progress Protection Cover | Ip-20 Polycarbonate |
| Gasket | Silicon |
| Accessories | Stainless Steel |
| Paint | Powder Coating |
| Mounting | Ceiling |
| Power Cord | 0.75mm2 triple shield wire |
| Cerficate | CE, RoHS, BIS, FCC, BEE |
Technical Specification
| Voltage Range | 90V-290V AC |
| Power Consumption | As per sheet below |
| PF | >0.95 |
| THD | <15% |
| Phase type | Single phase |
| Internal wiring | PTFE |
| Input wire | 3 Core (Red Phase, Black Neutral, Green Ground) |
| Frequency | 50Hz-60Hz |
| Efficiency | >85% |
| Illuminance Design | LED + Reflector |
| Storage Temperature | -25°C ~ +65°C(Best 25°C) |
Lighting Specification
| Available wattages | 6 watts to 30 watts |
| No. of LEDs | Optional |
| Lumens Output (Datasheet) | 145 lumens/Watts |
| Color Temperature | 2800~6500k (Optional) |
| Beam Angle | 120° |
| CRI | >80 Ra |
| Operating Temp. | -40°C to 60°C |
| Life Span | >50000H |
