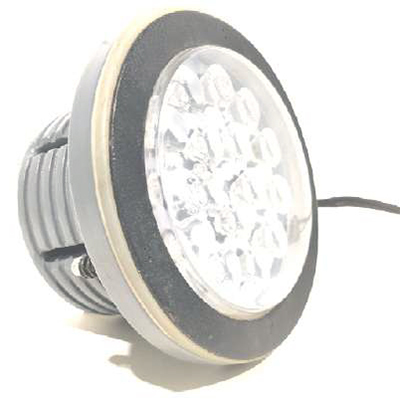

RS1-RS3 LED Head Light
Product Details:
RS1-RS3 LED Head Light Price And Quantity
- 21000 INR/Piece
- 21000-30000 INR/Piece
- 500 , , Piece
- 21000.00 - 30000.00 INR/Piece
Product Description
Housing Specification
Body Material | Aluminum |
Cover | Glass |
Gasket | Silicon |
Accessories | Stainless Steel |
Paint | Powder Coating |
Mounting | Via screws |
Power | 0.75mm2 triple shield wire |
Certificate | CE, RoHS, BIS, FCC, BEE |
Technical Specifications
Voltage Range | 110V DC/ 24V DC |
Power Consumption | As per sheet below |
PF | >0.95 |
THD | <15% |
Phase type | Single phase |
Internal wiring | Teflon |
Input wire | 3 Core (Red Phase, Black Neutral, Green Ground) |
Frequency | 50Hz-60Hz |
Efficiency | >85% |
Illuminance Design | LED + Reflector |
Storage Temperature | -25°C ~ +65°C(Best 25°C) |
Lighting Specifications
Available wattages | 15W to 50W |
No. of LEDs | Optional |
Lumens Output (Data sheet) | 145 lumens/Watts |
Color Temperature | 2800~6500k(optional) |
Beam Angle | 120° |
CRI | >80 Ra |
Operating Temp. | -40°C to 60°C |
Life Span | >50000H |
