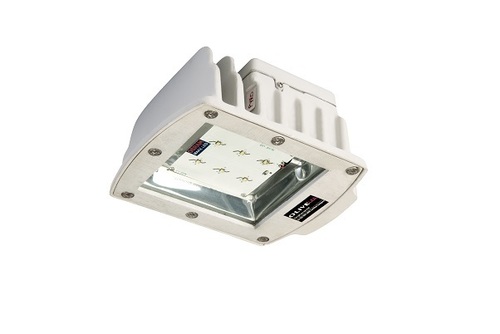

SLOL-150- 200
Product Details:
Product Description
Unique Features
Designed and die casted with high class LM-06 grade aluminium supported with all SS 304 grade accessories, toughened glass and equipped with LM 80 certified LEDs and electronic component to perform and give best possible results.
Applications: Street, Lawn, Garden, Compound, Industry etc.
Features:
- High voltage protection
- Over current protection
- Over heat protection
- Surge protection 4KV
- Short Circuit protections
Housing Specifications
| Body Material | Aluminum |
| Dimension | 660x320x98mm |
| Weight | 12 Kg |
| Pole Diamete | IP-65 |
| Pole Diameter | 2" to 2.5” inch adjustable |
| Cover | Toughened Glass |
| Gasket | Silicon |
| Accessories | Stainless Steel |
| Paint | Powder Coating |
| Mounting | Pole Clamp |
| Power Cord | 1mm2 triple shield wire |
| Certificate | CE, RoHS, BIS, FCC,BEE |
Technical Specifications
| Voltage Range | 90V-290V AC |
| Power Consumption | As per sheet below |
| PF | >O.95 |
| THD | <10% |
| Phase type | Single phase |
| Internal wiring | ptfe |
| Input wire | 3 Core (Red Phase, Black Neutral, Green Ground) |
| Frequency | 50Hz-60Hz |
| Efficiency | >85% |
| Illuminance Design | LED + Reflector |
| Storage Temperature | -25°C ~ +65°C(Best 25°C) |
Lighting Specifications
| Available wattages | 200W, 250W, 300W |
| No.of LEDs | 160,200,320 |
| Lumens Output (Datasheet) | 130 lumens/Watts |
| Color Temperature | 2800~6500k(optional) |
| Beam Angle | 120° |
| CRI | >80 Ra |
| Operating Temp. | -40°C to 60°C |
| Life Span | >50000H |
